Pipes & Tubes

Home / Pipes & Tubes

Products

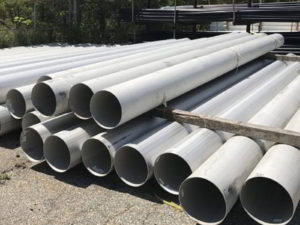

Pipes & Tubes

We supply a wide range of precisely engineered stainless steel pipes & tubes, made in compliance with international quality and safety standards. Our range comprises of stainless steel welded pipes & tubes. Available in different dimensions & grades, these stainless steel welded tubes and pipes are widely used in different industries like power, engineering, construction, and many more. We offer products at highly competitive prices and deliver consignments within stipulated time.

Pipes and Tubes

Stainless & Duplex Steel

Duplex, typically grade EN 1.4410 up to so-called Hyper duplex grades developed later to meet specific demands of the oil & gas as well as those of the chemical industries. They offer a superior corrosion resistance and strength but are more difficult to process because the higher contents of Cr, Ni, Mo, N and even W promote the formation of intermetallic phases, which reduce drastically the impact resistance of the steel.

Range: 15 NB UP TO 1200 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS.
From: Seamless / Erw / Welded in Round & Square .
Stainless Steel : ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L .
Duplex Steel : ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Pipes and Tubes

Carbon & Alloy Steel

Steel is considered to be carbon steel when no minimum content is specified or required for chromium, cobalt, columbium [niobium], molybdenum, nickel, titanium, tungsten, vanadium or zirconium, or any other element to be added to obtain a desired alloying effect; when the specified minimum for copper does not exceed 0.40 per cent; or when the maximum content specified for any of the following elements does not exceed the percentages noted: manganese 1.65, silicon 0.60, copper 0.60.

Range: 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS
From: Seamless / Erw / Welded in Round & Square
Carbon Steel :
ASTM / ASME A 53 GR. A , B
ASTM / ASME 106 GR. A , B ,C .
API 5L GR. B , API 5L X 42 , X 46 , X 52 , X 60 , X 70.
ASTM / ASME A 691 GRA , B ,C
Alloy Steel:
 ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
Pipes and Tubes

Nickel & Copper Alloy

Copper and nickel are adjacent to one another in the periodic system of elements, with atomic numbers 29 and 28 and atomic weights 63.54 and 68.71. The two elements are closely related and are completely miscible in both the liquid and solid state. Cu-Ni alloys crystallise over the whole concentration range in a face-centred cubic lattice. The lattice spacing of the face-centre cubic solid solution varies almost linearly with atomic concentration between the values for copper (3.6153 . 10-8cm) and that for nickel (3.5238 . 10-8cm).

Range: 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS
From: Seamless / Erw / Welded in Round & Square.
Nickel Alloy :
ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 163 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 )
ASTM / ASME SB 704/705 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 )
Copper Alloy :
 ASTM / ASME SB 111 UNS NO. C 10100 , 10200 , 10300 , 10800 , 12000,12200, 70600 , 71500 . ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Pipes and Tubes

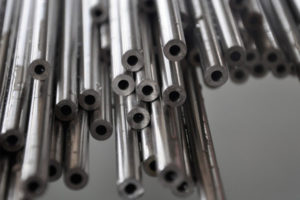

Hastelloy

Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media).

Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Type:Seamless / Erw / Welded/ Fabricated
Standard :
Hastelloy Seamless Pipe
Hastelloy ERW Pipe
This range is used in :
Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery
Pipes and Tubes

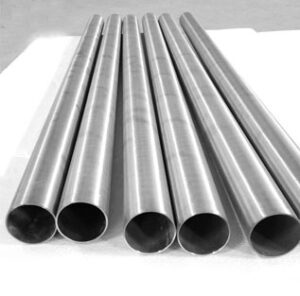

Inconel

Grades :Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Type:Seamless / Erw / Welded/ Fabricated
Form:
Round, Square, Rectangular, Hydraulic etc.
Length:
Single Random, Double Random & Cut Length
End:
Plain End, Beveled End, Threaded
This range is used in :
Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery
Pipes and Tubes

Incoloy

Grades :Incoloy 800, incoloy 825, Incoloy 330, Incoloy 925
Type: Seamless / Welded
Form: Round, Square, Rectangular
Length: Single Random, Double Random & Cut Length
Pipes and Tubes

Monel

Grades : Monel 400, Monel k500
Type: Elbows, Equal/Unequal Tees, Concentric/Eccentric Reducers, Full/Half Couplings, Reducing Couplings, Caps, Cross, Unions, Hex/Reducing/Flash Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals Street Elbows & Outlets/Branch Connections (Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets)
Pipes and Tubes

Titanium

Grades : Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23
Size: 1/2” NB to 4” NB
Type: Titanium Union Titanium Coupling Titanium Full Coupling Titanium Cross Titanium Forged Elbow Titanium Hex Nipple Titanium Plug Titanium Bushing Titanium Boss Titanium Insert Titanium Adapter Titanium Socket Titanium Forged Tee
