Sheets, Plates & Coils

Home / Sheets, Plates & Coils

Products

Pipes and Tubes

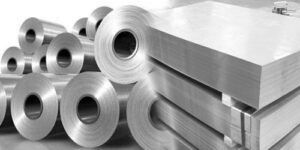

Sheets Plates & Coils

We offer a wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, industrial stainless steel plates, which are fabricated from the finest quality raw materials. Manufactured as per international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in the construction and engineering industries.

User Industries: Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personnel.

Pipes and Tubes

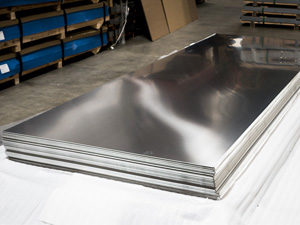

Stainless & Duplex Steel

Range: 0.1 mm to 100 mm thick up to 2500 mm width & up to 8000 mm length available with NACE MR 01-75s.
Stainless Steel: ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel : ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Pipes and Tubes

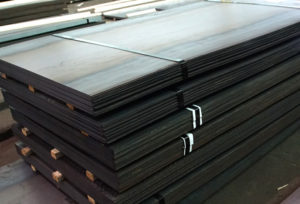

Carbon & Alloy Steel

Range: 3 mm to 100 mm thick in up to 2500 mm width up to 12500 mm length available with NACE MR 01-75s
Carbon Steel: ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002
Alloy Steel : ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
Pipes and Tubes

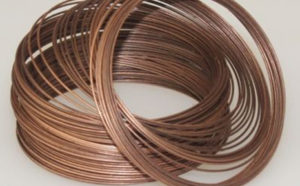

Nickel & Copper Alloy

Sheet and Plates Range : 5 mm to 100 mm thick in up to 2500 mm width & up to 6000 length available with NACE MR 01-75s.
Nickel Alloy : ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Pipes and Tubes

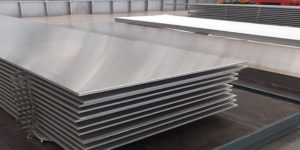

Hastelloy

Sheet and Plates Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000.
Form: Hastelloy Sheet
Hastelloy Coil
Hastelloy Strips
Hastelloy Plates
Hastelloy Circle
Hastelloy Ring
Pipes and Tubes

Inconel

Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Pipes and Tubes

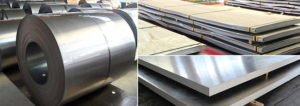

Incoloy

Sheet and Plates Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Type: Seamless / Erw / Welded/ Fabricated
Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
This range is used in : Petrochemicals Plants
Oil Refineries
Fertilizers Plants
Sugar Mills
Chemical Plants
Pharmaceuticals
Textile Machinery
Pipes and Tubes

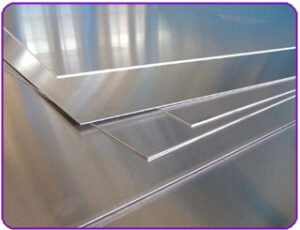

Monel

Sheet and Plates Grades : Monel 400, Monel k500
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End: Plain End, Beveled End, Threaded
The salient features are as follows : Hot Dipped Galvanizing Epoxy & Fbe Coating Electro Polish Draw & Expansion
Pipes and Tubes

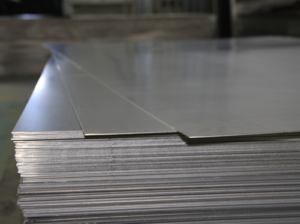

Titanium

Sheet and Plates Specifications1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm – 60mm
3)Length:6000mm
4)ASTM B265,ASTM 4911,F67,F136
Material : titanium and titanium alloys
Pure Titanium Grade : GR1, GR2, GR3, GR4
Titanium Alloy Grade : GR5 (6% Al, 4%V) GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
End: Plain End, Beveled End, Threaded
The salient features are as follows : Hot Dipped Galvanizing Epoxy & Fbe Coating Electro Polish Draw & Expansion
Specification Product Form
ASTM B265 (Gr2) Sheet, Strip, and Plate
ASTM B338 Tube, Seamless, and Welded
ASTM B348 (Gr2) Bars and Billets
ASTM B861 Seamless Pipe
ASTM B863 Wire
ASTM F67 (Gr2) Unalloyed Titanium for Surgical Implants
